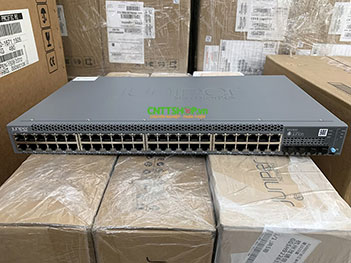

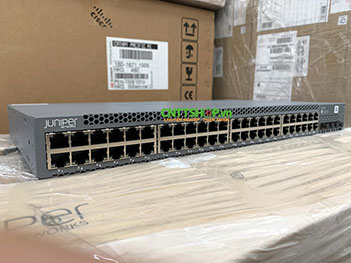

Switch Juniper EX2300-48T
Thiết bị chuyển mạch EX2300-48T có thiết kế tiêu chuẩn Rack 1U với số lượng cổng lớn, cung cấp 48 cổng GE và 4 cổng uplink 1/10GbE SFP/SFP+. Đây là thiết bị được nhiều doanh nghiệp lựa chọn làm bộ chia mạng với nhiều tính năng và công nghệ hiện đại, giúp doanh nghiệp tiết kiệm chi phí đầu tư, tối ưu hóa quá trình triển khai và quản trị mang.

Để cấu hình và quản lý tập trung nhiều thiết bị thì EX2300-48T hỗ trợ công nghệ Virtual Chassis có thể gộp bốn thiết bị cứng thành một thiết bị logic duy nhất, từ đó bạn sẽ cài đặt và quản trị các thiết bị vật lý một cách đơn giản và nhanh chóng. Switch Juniper EX2300-48T được áp dụng kiến trúc đám mây Juniper Mist, thông qua dịch vụ này với cơ chế tự động hóa do AI hỗ cho các thiết bị được kết nối, mang lại trải nghiệm tốt hơn cho người dùng.
Đặc trưng nổi bật Switch Juniper EX2300-48T
- Công nghệ Khung gầm ảo cho phép tối đa bốn thiết bị EX2300-48T được kết nối với nhau để tạo thành một thiết bị logic duy nhất.

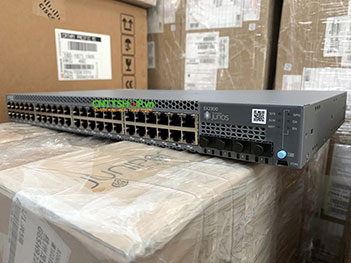

- Bốn cổng uplink 1GbE SFP / 10GbE SFP + linh hoạt cung cấp kết nối tốc độ cao với các thiết bị chuyển mạch lớp tổng hợp (distribution) hoặc các thiết bị ngược dòng khác.
- 48 cổng 1GbE trên thiết bị đều được hỗ trợ Ethernet hiệu quả năng lượng (EEE).
- Đơn giản hóa việc quản lý với Juniper Mist Wired Assurance.
- Đạt chứng nhận giảm thiểu chất thải nguy hại (RoHS)

Thông số kỹ thuật Switch Juniper EX2300-48T
Datasheet EX2300-48T |
Physical Specifications |
Dimensions (W x H x D) |
+ Width:
- 17.4 in (44.19 cm) for desktop installations
- 17.5 in (44.6 cm) with rack-mount brackets
+ Height: 1.75 in (4.45 cm) for 1U installations
+ Depth: 10.2 in (25.9 cm) |
Backplane |
80 Gbps Virtual Chassis interconnect to link up to four switches as a single logical device |
Weight |
8.29 lb (3.76 kg) |
Environmental Ranges |
+ Operating temperature: 32° to 113° F (0° to 45° C)
+ Storage temperature: -40° to 158° F (-40° to 70° C)
+ Operating altitude: up to 13,000 ft (3962 m) at 40° C according to GR-63
+ Non-operating altitude: up to 15,000 ft (4572 m)
+ Relative humidity operating: 10% to 85% (noncondensing)
+ Relative humidity non-operating: 0% to 95% (noncondensing) |
Hardware Specifications |
Switching Engine Model |
Store and forward |
DRAM |
2 GB |
Flash |
2 GB |
CPU |
1.25GHz ARM CPU |
GbE port density per system |
52 (48 host ports + four-port SFP/SFP+ uplinks) |
Packet Switching Capacities |
176 Gbps |
Layer 2 Throughput (Mpps) |
130 Mpps (wire speed) |
Layer 2 Switching |
+ Maximum MAC addresses in hardware: 16,000
+ Jumbo frames: 9216 bytes
+ Number of VLANs supported: 4093
+ Range of possible VLAN IDs: 1-4094
+ Port-based VLAN
+ MAC-based VLAN
+ Voice VLAN
+ Layer 2 Tunneling Protocol (L2TP)
+ IEEE 802.1ak: Multiple VLAN Registration Protocol (MVRP)
+ Compatible with Per-VLAN Spanning Tree Plus (PVST+)
+ RVI (Routed VLAN Interface)
+ IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
+ LLDP-MED with VoIP integration
+ IEEE 802.1ad Q-in-Q tunneling
+ IEEE 802.1br: Bridge Port Extension
+ IEEE 802.1D: Spanning Tree Protocol
+ IEEE 802.1p: CoS Prioritization
+ IEEE 802.1Q: VLAN Tagging
+ IEEE 802.1Q-in-Q: VLAN Stacking
+ IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP)
+ Number of MST instances supported: 64
+ Number of VSTP instances supported: 253
+ IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP)
+ IEEE 802.1X: Port Access Control
+ IEEE 802.3: 10BASE-T
+ IEEE 802.3u: 100BASE-T
+ IEEE 802.3ab: 1000BASE-T
+ IEEE 802.3z: 1000BASE-X
+ IEEE 802.3ad: Link Aggregation Control Protocol (LACP)
+ IEEE 802.3x: Pause Frames/Flow Control |
Layer 3 Features: IPv4 |
+ Maximum number of ARP entries: 1,500
+ Maximum number of IPv4 unicast routes in hardware: 512 prefixes; 4,096 host routes
+ Maximum number of IPv4 multicast routes in hardware: 2,048 groups; 2,048 multicast routes
+ Routing Protocols: RIP v1/v2, OSPF v1/v2
+ Static routing
+ Routing policy
+ Bidirectional Forwarding Detection (BFD) with slow timers (> 3 sec)
+ IP directed broadcast |
Layer 3 Features: IPv6 Management Functionality |
+ Maximum number of Neighbor Discovery (ND) entries: 1,500
+ Maximum number of IPv6 unicast routes in hardware: 512 prefixes; 2,048 host routes
+ Maximum number of IPv6 multicast routes in hardware: 1,024 groups; 1,024 multicast routes
+ Neighbor discovery, system logging, Telnet, SSH, SNMP, Network Time Protocol (NTP), Domain Name System (DNS)
+ Static routing
+ Routing protocols: RIPng, OSPF v3, Multica |
Access control lists (ACLs) (Junos OS firewall filters) |
+ Port-based ACL (PACL)—256 ingress; 256 egress
+ VLAN-based ACL (VACL)— 256 ingress; 256 egress
+ Router-based ACL (RACL)—256 ingress; 512 egress
+ ACL entries (ACE) in hardware per system: 2,000
+ ACL counter for denied packets
+ ACL counter for permitted packets
+ Ability to add/remove/change ACL entries in middle of list (ACL editing)
+ L2-L4 ACL |
Security |
+ MAC limiting
+ Allowed MAC addresses—configurable per port
+ Sticky MAC (persistent MAC address learning)
+ Dynamic ARP inspection (DAI)
+ Proxy ARP
+ Static ARP support
+ DHCP snooping
+ 802.1X port-based
+ 802.1X multiple supplicants
+ 802.1X with VLAN assignment
+ 802.1X with authentication bypass access (based on host MAC address)
+ 802.1X with VoIP VLAN support
+ 802.1X dynamic ACL based on RADIUS attributes
+ 802.1X Supported EAP types: Message Digest 5 (MD5), Transport Layer Security (TLS), Tunneled Transport Layer Security (TTLS), Protected Extensible Authentication Protocol (PEAP)
+ IPv6 RA Guard
+ IPv6 Neighbor Discovery Inspection
+ Captive Portal
+ Static MAC authentication
+ MAC-RADIUS
+ Control plane DoS protection
+ Fallback authentication
+ Trusted Network Connect (TNC) certified |
Bạn đang cần tư vấn về sản phẩm: EX2300-48T ?
CPU của switch EX2300-48T là CPU ARM bạn nhé
Acoustic Noise của Switch EX2300-48T là 34.6dB ạ
Switch EX2300-48T cần phải có license S-EX-A-C2/ S-EX-A-C3 để kích hoạt được chức năng này ạ
Bạn có thể dùng module EX-SFP-1GE-LH cho switch EX2300-48T nhé
Switch Juniper EX2300-48T có port mirroring và VLAN mirroring đó bạn
