| Physical Specifications |
| Uplink |
Fixed 4-port uplinks which can be individually configured as GbE (SFP) or 10GbE (SFP+) ports |
| Dimensions (W x H x D) |
17.4 x 1.7 x 12 in (43.7 x 4.4 x 31 cm) |
| Weight |
10.8 lb (4.9 kg) |
| Environmental Ranges |
+ Operating temperature: 32° to 113° F (0° to 45° C)
+ Storage temperature: -40° to 158° F (-40° to 70° C)
+ Operating altitude: Up to 10,000 ft (3,049 m)
+ Non-operating altitude: Up to 16,000 ft (4,877 m)
+ Relative humidity operating: 10% to 85% (noncondensing)
+ Relative humidity non-operating: 0% to 95% (noncondensing) |
| Hardware Specifications |
| Switching Engine Model |
Store and forward |
| DRAM |
1 GB with ECC |
| Flash |
1 GB |
| CPU |
1 GHz |
| GbE port density per system |
52 (48 host ports + four 10 GbE/GbE uplink ports) |
| Virtual Chassis Capabilities |
+ Maximum number of members: 10
+ Number of Virtual Chassis ports: 4
+ Maximum Virtual Chassis interconnect capacity: 80 Gbps |
| Physical Layer |
+ Time Domain Reflectometry (TDR) for detecting cable breaks and shorts
+ Auto medium-dependent interface/medium dependent interface crossover (MDI/MDIX) support
+ Port speed downshift/setting maximum advertised speed on 10/100/1000BASE-T ports
+ Digital optical monitoring for optical ports |
| Packet Switching Capacities |
176 Gbps |
| Layer 2 Throughput (Mpps) |
130 Mpps |
| Layer 2 Switching |
+ Maximum MAC addresses per system: 16,000
+ Jumbo frames: 9,216 Bytes
+ Number of VLANs: 4,096
+ Range of possible VLAN IDs: 1-4,095
+ Port-based VLAN
+ MAC-based VLAN
+ Voice VLAN
+ Compatible with Per-VLAN Spanning Tree Plus (PVST+)
+ RVI (Routed VLAN Interface)
+ IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
+ LLDP-MED with VoIP integration
+ IEEE 802.1D: Spanning Tree Protocol
+ IEEE 802.1p: CoS prioritization
+ IEEE 802.1Q: VLAN tagging
+ IEEE 802.1Q-in-Q: VLAN stacking
+ IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP)
+ IEEE 802.1ak Multiple VLAN Registration Protocol (MVRP)
+ Persistent MAC (sticky MAC)
+ Number of MST instances supported: 64
+ Number of VSTP instances supported: 253
+ IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP)
+ RSTP and VSTP running concurrently
+ IEEE 802.1X: Port access control
+ IEEE 802.3: 10BASE-T
+ IEEE 802.3u: 100BASE-T
+ IEEE 802.3ab: 1000BASE-T
+ IEEE 802.3z: 1000BASE-X
+ IEEE 802.3x: Pause frames/flow control
+ IEEE 802.3ad: Link Aggregation Control Protocol (LACP)
+ Layer 3 VLAN-tagged sub-interface
+ NetBios snooping
+ Multicast VLAN Registration (MVR)
+ Metro - PVLAN support
- IEEE 802.1ag connectivity fault management
- ITU-T G.8032 Ethernet Ring Protection Switching
- IEEE 802.1ad Q-in-Q tunneling
- Multicast VLAN routing
- Layer 2 Tunneling Protocol (L2TP)
- Adding/removing single tag
+ Filter-based SVLAN tagging
+ Flexible CoS (outer .1P marking) |
| Layer 3 Features: IPv4 |
+ Maximum number of Address Resolution Protocol (ARP) entries: 4,000
+ Maximum number of IPv4 unicast routes in hardware: 8,000
+ Layer 3 redundancy: VRRP
+ Routing protocols:
- RIP v1/v2
- Static routing
- OSPF v2
- BGP v4
+ IP directed broadcast – traffic forwarding
+ Virtual router (VRF-Lite) supporting RIP, OSPF, BGP
+ Routing policy
+ Filter-based Forwarding (FBF)
+ Unicast Reverse Path Forwarding (uRPF)
+ Multiprotocol BGP (MBGP) |
| Layer 3 Features: IPv6 Management Functionality |
+ Neighbor discovery, system logging, Telnet, SSH, Junos Web, SNMP, Network Time Protocol (NTP), Domain Name System (DNS)
+ Static routing
+ IPv6 ACL (PACL, VACL, RACL)
+ IPv6 CoS (BA, MF classification and rewrite, scheduling based on TC)
+ MLDv1/v2 snooping
+ IPv6 ping, traceroute
+ IPv6 stateless auto-configuration
+ IPv6 Layer 3 forwarding in hardware |
| Layer 3 Features: IPv6 Routing |
+ RIPng
+ OSPF v3
+ BGP v6
+ IPv6 Layer 3 redundancy: VRRP v6
+ Virtual Router support for IPv6 unicast
+ PIM for IPv6 multicast
+ MBGP |
Switch
.png){kind=icon}
.png){kind=logo}

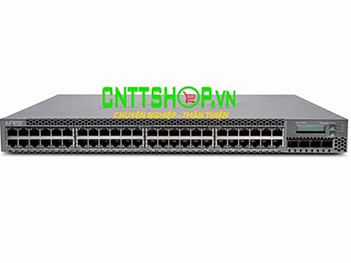

Bạn đang cần tư vấn về sản phẩm: EX3300-48T-BF ?
Datasheet của Switch Juniper EX3300-48T-BF đã được gửi vào mail của bạn. Nếu cần tư vấn chi tiết hơn, bạn vui lòng liên hệ với shop để được hỗ trợ thêm nhé.
Báo giá mã switch Juniper EX3300-48T-BF đã được gửi vào mail, anh vui lòng check mail nhé.
Switch Juniper EX3300-48T-BF này có hỗ trợ PoE không ad?
Mã switch Juniper EX3300-24T-DC không hỗ trợ PoE ạ. Anh vui lòng để lại liên hệ để được tư vấn tốt nhất ạ
Thông số phần cứng của switch Juniper EX3300-48T-BF này như nào vậy ad?
Mã switch Juniper EX3300-48T-BF này có CPU 1 GHz, DRAM 1GB có ECC, Flash 1 GB ạ
Switch Juniper EX3300-48T-BF có tốc độ chuyển mạch là 176 Gbps và thông lượng là 130 Mpps ạ
