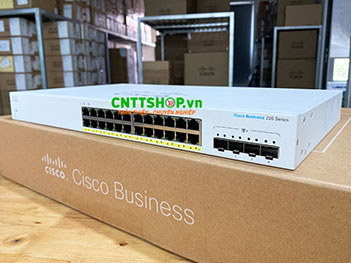

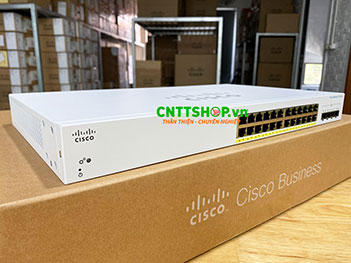

Switch Cisco Business CBS220-24P-4X-EU
Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Thiết bị chuyển mạch Cisco Business 220 series CBS220-24P-4X-EU có 24 cổng 1GE có hỗ trợ PoE+ với tổng công suất PoE là 195W và 4 cổng 10G SFP+ Uplink.

Cisco Business CBS220-24P-4X-EU đã được Cisoc thử nghiệm để mang lại tính khả dụng và hiệu suất cao, với tốc độc chuyển mạch là 128Gbps, cho phép truy cập internet tốc độ cao. Với khả năng QoS nâng cao, Cisco Business 220 Series cũng cung cấp sự linh hoạt để quản lý và ưu tiên lưu lượng băng thông cao để có thể dễ dàng tích hợp tất cả các nhu cầu kết nối trên một cơ sở hạ tầng hội tụ duy nhất.
Thông số kỹ thuật switch Cisco CBS220-24P-4X-EU
Specifications - Datasheet CBS220-24P-4X-EU |
Performance |
Forwarding rate in millions of packets per second (mpps; 64-byte packets) |
95.23 Mpps |
Switching Capacity in Gigabits per Second |
128 Gbps |
Layer 2 Switching |
MAC table:
- Up to 8,192 Media Access Control (MAC) addresses
Spanning Tree Protocol:
- Standard 802.1d Spanning Tree support, enabled by default
- Fast convergence using 802.1w (Rapid Spanning Tree [RSTP])
- Multiple Spanning Tree instances using 802.1s (MSTP)
- 16 instances are supported
Port grouping/link aggregation:
- Up to 8 groups
- Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregationVLAN
- Support for up to 256 Virtual Local Area Networks (VLANs) simultaneously
- Port-based and 802.1Q tag-based VLANs
- Management VLAN
- Guest VLAN
Auto voice VLAN
QinQ VLAN
Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP)
Head-of-Line (HOL) blocking: HOL blocking prevention
Jumbo frame: Frame sizes up to 9,216 supported
Loopback detection
Automatic Media-Dependent Interface Crossover (MDIX)
|
Security |
ACLs Support for up to 512 rules
Port security
IEEE 802.1X (Authenticator role)
RADIUS, TACACS+
MAC address filtering
Storm control
DoS protection
STP Bridge Protocol Data Unit (BPDU) Guard
Spanning Tree Loop Guard
Secure Shell (SSH) Protocol
Secure Sockets Layer (SSL)
|
Management |
Cisco Business Dashboard
Cisco Business mobile app
Cisco Network Plug and Play (PnP) agent
Web user interface
Text-editable config files
Command-line interface
SNMP
Standard Management Information Bases (MIBs)
Remote Monitoring (RMON)
IPv4 and IPv6 dual stack
Port mirroring
DHCP (Option 12, 66, 67, 82, 129, and 150)
Time synchronization
Login banner
HTTP/HTTPS; TFTP upgrade; DHCP client; Bootstrap Protocol (BOOTP); cable diagnostics; ping; traceroute; syslog
|
Power over Ethernet (PoE) |
Power Dedicated to PoE |
195W |
Number of Ports That Support PoE |
24 Ports |
Power consumption |
System Power Consumption |
110V=36.9W
220V=37.6W |
Power Consumption (with PoE) |
110V=248.7W
220V=244.4W |
Heat Dissipation (BTU/hr) |
848.6 |
Hardware |
Total System Ports |
24 x Gigabit Ethernet and 4 x 10Gigabit SFP+ |
RJ-45 Ports |
24 x Gigabit Ethernet |
Uplink ports |
4 x 10Gigabit SFP+ |
Buttons |
Reset button |
Cabling type |
Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T
|
LEDs |
System, Link/Act, PoE, Speed |
Flash |
64 MB |
Memory |
256 MB |
Packet buffer |
12 Mb |
Environmental |
Unit dimensions (W x H x D) |
440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in) |
Unit weight |
4.03 kg (8.88 lb) |
Power |
100-240V, 50-60 Hz, internal, universal |
Storage temperature |
-20° C to +70° C |
Operating humidity |
10% to 90%, relative, noncondensing |
Storage humidity |
10% to 90%, relative, noncondensing |
Acoustic noise and Mean Time Between Failure (MTBF) |
Fan (number) |
2 |
Acoustic Noise |
25°C: 42.7 dB |
MTBF at 25°C (hours) |
617,232 |
Bạn đang cần tư vấn về sản phẩm: CBS220-24P-4X-EU ?
Chào bạn, bạn có thể dùng module GLC-TE để mở rộng thêm cổng mạng cho Switch CBS220-24P-4X-EU ạ
Chào bạn, Module SFP-10G-20KM-B dùng được cho Switch Cisco CBS220-24P-4X-EU bạn nhé.
Thiết bị chuyển mạch Cisco Business 220 series CBS220-24P-4X-EU có tốc độ chuyển mạch 128Gbps ạ
Switch Cisco CBS220-24P-4X-EU đã có tai rack đi kèm bạn nhé.
Báo giá Module 10G MM dùng cho Switch Cisco CBS220-24P-4X-EU đã được gửi vào email, bạn vui lòng check email giúp shop ạ.
