Description
|
Specifications
|
| Performance |
|
Switching capacity
|
128 Gbps
|
|
Forwarding rate
|
95.23 Mpps
|
|
Virtual Networks
|
4
|
|
Stacking bandwidth
|
160 Gbps
|
|
Total number of MAC addresses
|
32,000
|
|
Total number of IPv4 routes (ARP plus learned routes)
|
14,000 (10,000 direct routes and 4,000 indirect routes)
|
|
IPv4 routing entries
|
4,000
|
|
IPv6 routing entries
|
2,000
|
|
Multicast routing scale
|
1,000
|
|
QoS scale entries
|
1,000
|
|
ACL scale entries
|
1,600
|
|
Packet buffer per SKU
|
6 MB buffers
|
|
Flexible NetFlow (FNF) entries
|
16,000 flows
|
|
DRAM
|
4 GB
|
|
Flash
|
4 GB
|
|
VLAN IDs
|
4096
|
|
Total Switched Virtual Interfaces (SVIs)
|
1000
|
|
Jumbo frames
|
9198 bytes
|
|
Wireless bandwidth per switch
|
Up to 48 Gbps
|
|
Default primary power supply
|
PWR-C6-600WAC
|
|
Available PoE power with single primary power supply only
|
370W
|
|
Optional secondary power supply
|
PWR-C6-600WAC
|
|
Available PoE power with additional secondary power supply
|
740W
|
|
Features
|
| Switch fundamentals |
Layer 2, Routed Access (RIP, EIGRP Stub, OSPF - 1000 routes), PBR, PIM Stub Multicast (1000 routes), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1X, MACsec-128, CoPP, SXP, IP SLA Responder |
| Advanced switch capabilities and scale |
EIGRP, HSRP, IS-IS, BSR, MSDP, IP SLA, OSPF
|
| Network segmentation |
VRF, VXLAN, LISP, SGT
|
|
Automation
|
NETCONF, RESTCONF, YANG, PnP Agent, PnP
|
|
Telemetry and visibility
|
Model-driven telemetry, sampled NetFlow, SPAN, RSPAN
|
|
Security
|
MACsec-128
|
|
Physical Specifications
|
| Chassis Dimensions |
1.73 x 17.5 x 13.8 Inches
4.4 x 44.5 x 35.0 Centimeters |
| weight |
12.12 Pounds
5.5 Kilograms |
| Mean time between failures (hours) |
422,310 |
| Connectors |
| Connectors and cabling |
- 1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
- 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
- 100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, dense wavelength-division multiplexing (DWDM) and Coarse Wavelength-Division Multiplexing (CWDM) SFP transceivers: LC fiber connectors (single-mode or multimode fiber)
- 10GBASE-SR, LR, LRM (only C9200), ER, ZR, DWDM SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber)
- SFP+ connector
- Cisco StackWise-160 stacking ports: copper-based Cisco StackWise cabling
- Ethernet management port: RJ-45 connectors, 4-pair Cat 5 UTP cabling
- Management console port: RJ-45-to-DB9 cable for PC connections,USB-C adaptor, USB adaptor
|
| Power connectors |
Internal power supply connector: The internal power supply is an auto-ranging unit. It supports input voltages between 100 and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
|
| Standards, Safety and compliance information |
| Standards |
EEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.1x-Rev
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p CoS prioritization
IEEE 802.1Q VLAN
IEEE 802.3 10BASE-T specification
IEEE 802.3u 100BASE-TX specification
IEEE 802.3ab 1000BASE-T specification
IEEE 802.3z 1000BASE-X specification
IEEE 802.3bz 10G BASE-T specification
RMON I and II standards
SNMPv1, v2c, and v3
|
| Safety certifications |
- IEC 60950-1
- UL 60950-1
- CAN/CSA C22.2 No. 60950-1
- EN 60950-1
- AS/NZS 60950.1
- Class I Equipment
|
| Electromagnetic emissions certifications |
- 47 CFR Part 15
- CISPR 22 Class A
- CISPR 32 Class A
- CNS 13438
- EN 300 386
- EN 55022 Class A
- EN 55032 Class A
- EN61000-3-2
- EN61000-3-3
- ICES-003 Class A
- KN 32
- TCVN 7189 Class A
- V-3 Class A
- CISPR 24
- EN 300 386
- EN 55024
- KN 35
- TCVN 7317
|
| Environmental |
Reduction of Hazardous Substances (ROHS) 5
|
Switch
.png){kind=icon}
.png){kind=logo}
.jpg)
.png){kind=logo}
.jpg)
Bạn đang cần tư vấn về sản phẩm: C9200-24P-A ?
Chào anh,
Cisco C9200-24P-A cung cấp 24 cổng Gigabit Ethernet hỗ trợ PoE+, anh có thể tham khảo thêm trong datasheet của hãng: https://cnttshop.vn/storage/Datasheet/Cisco/Cisco-Catalyst-9200-datasheet.pdf.
CNTTShop đã gửi tài liệu qua email: namnh@******, anh vui lòng check inbox ạ.
Thông tin đến anh!
Thiết bị chuyển mạch Cisco C9200-24P-A chưa bao gồm module stack khi đặt hàng. Anh cần mua thêm Module C9200-STACK-KIT Catalyst 9200 StackWise-160 160 Gbps Stack Kit Module để sử dụng.

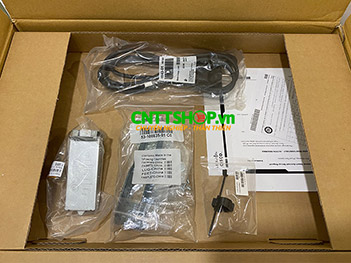

Phụ kiện thiết bị chuyển mạch Cisco Catalyst C9200-24P-A gồm dây nguồn C13, tai rack và tài liệu kèm theo nhé bạn.
báo giá 3 chiếc Thiết bị mạng Switch Cisco C9200-24P-A đã được gửi vào mail của anh ạ
Giấy phép bản quyền Cisco C9200-DNA-A-24-3Y C9200 DNA Advantage, 24-port, 3 Year Term đã đi kèm khi anh chị mua thiết bị Switch Cisco C9200-24P-A ạ
