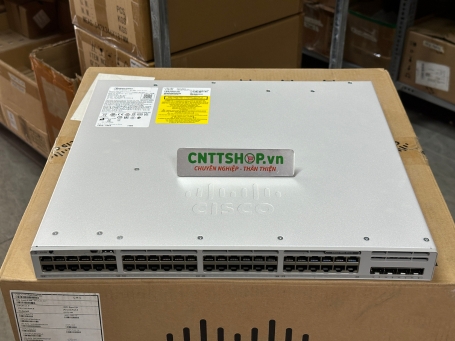

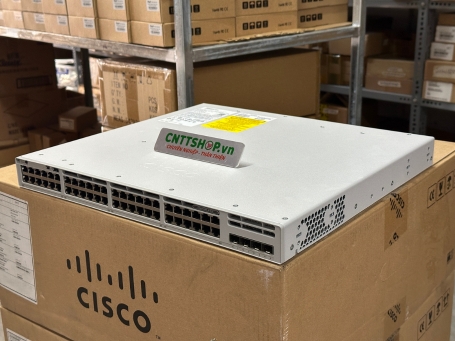

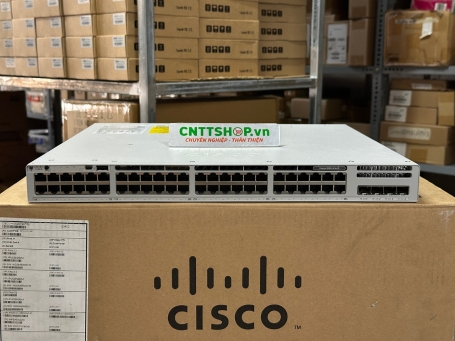

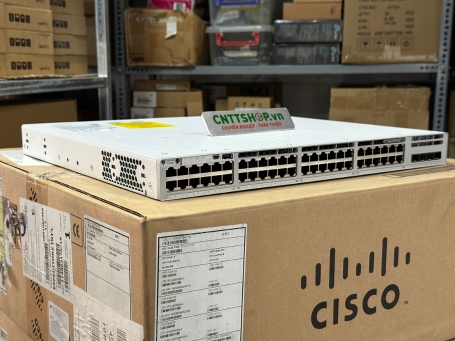

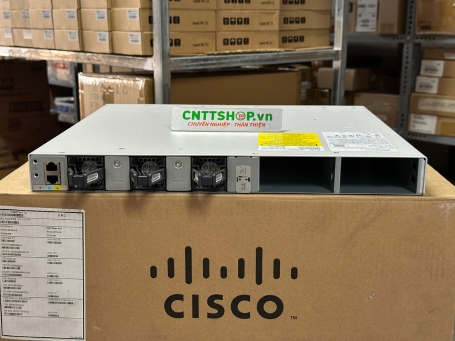

C9300L-48T-4G-A Cisco C9300L 48 Ports GE, 4X1G uplinks, Network Advantage
Thiết bị chuyển mạch Switch Cisco C9300L-48T-4G-A Catalyst C9300L 48 Ports 10/100/1000 Layer 3, 4X1G uplinks, Network Advantage
- Danh mục sản phẩm Switch Cisco 9300 Series
- Scenario
- Switch Type
- Số Cổng
- Routing/Switching
- Downlink Ports
- Uplink Ports
- Management
- Configurations
- Features
Cisco C9300L-48T-4G-A Catalyst C9300L
| Cisco Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Tổng quan
Thiết bị chuyển mạng Switch Cisco C9300L-48T-4G-A là nền tảng chuyển mạch doanh nghiệp có hỗ trợ tính năng Stacking của Cisco được xây dựng để bảo mật, IoT (Internet of Things), di động và đám mây.
View Datasheet C9300L-48T-4G-A

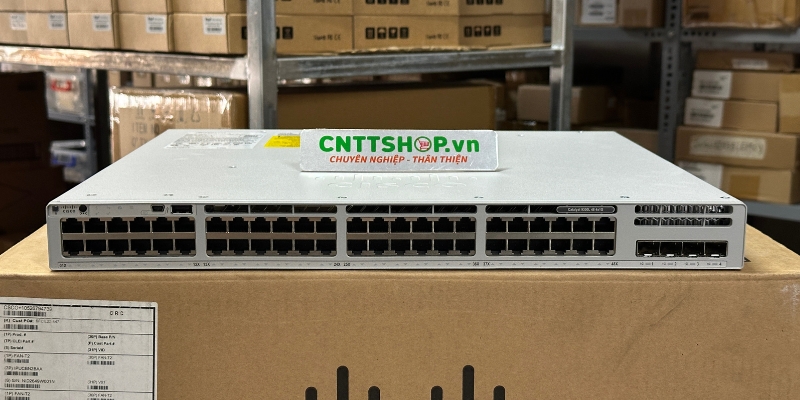

thiết bị chuyển mạng Cisco C9300L-48T-4G-A cung cấp 48 cổng đồng 10/100/1000 hỗ trợ các tính năng layer 2 và layer 3 nâng cao như BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM-BIDIR, IP SLA, OSPF cho các kết nối quang của doanh nghiệp.
Thông số kỹ thuật Switch Cisco C9300L-48T-4G-A
|
Description |
Performance |
|
Interface |
48 Ports 10/100/1000, 4x 1G fixed uplinks |
|
Switching capacity |
104 Gbps |
|
Stacking bandwidth |
320 Gbps |
|
Switching capacity with stacking |
424 Gbps |
|
Forwarding rate |
77.38 Mpps |
|
Forwarding rate with stacking |
315.48 Mpps |
|
Total number of MAC addresses |
32,000 |
|
Total number of IPv4 routes (ARP plus learned routes) |
32,000 (24,000 direct routes and 8000 indirect routes) |
|
IPv4 routing entries |
32,000 |
|
IPv6 routing entries |
16,000 |
|
Multicast routing scale |
8000 |
|
QoS scale entries |
5120 |
|
ACL scale entries |
5120 |
|
Packet buffer per SKU |
16 MB buffer |
|
FNF entries |
64,000 flow |
|
DRAM |
8 GB |
|
Flash |
16 GB |
|
VLAN IDs |
4094 |
|
Total Switched Virtual Interfaces (SVIs) |
2000 |
|
Jumbo frames |
9198 bytes |
|
Total routed ports per 9300 Series stack |
416 |
| Feature | |
|
Switch fundamentals |
Layer 2, Routed Access (RIP, EIGRP Stub, OSPF - 1000 routes), PBR, PIM Stub Multicast (1000 routes)), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1X, MACsec-128, CoPP, SXP, IP SLA Responder, SSO |
|
Advanced switch capabilities and scale |
BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM-BIDIR, IP SLA, OSPF |
|
Network segmentation |
VRF, VXLAN, LISP, SGT, MPLS, mVPN |
|
Automation |
NETCONF, RESTCONF, gRPC, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python) |
|
Telemetry and visibility |
Model-driven telemetry, sampled NetFlow, SPAN, RSPAN |
|
High availability and resiliency |
Nonstop Forwarding (NSF), Graceful Insertion and Removal (GIR), Fast Software Upgrade (FSU) |
|
IOT integration |
AVB, PTP, CoAP |
|
Security |
MACsec-256 |
|
Dimensions, Weight, and Mean Time Between Failures Metrics |
|
|
Dimensions (H x W x D) |
1.73 X 17.5 X 16.1 inch / 4.4 x 44.5 x 40.9 cm |
|
Weight |
15.41 Pounds / 7.0 Kilograms |
|
Mean time between failures (hours) |
387,860 |
|
Default AC power supply |
350WAC |
|
Available PoE power |
N/A |

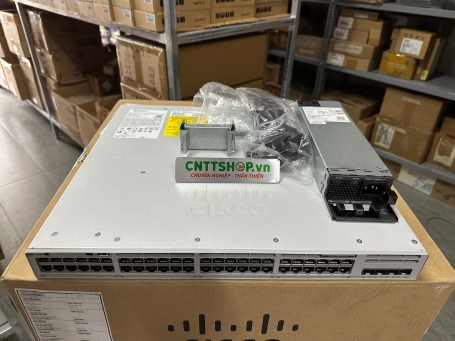

Cisco PWR-C1-350WAC 350W AC Catalyst 3850 9300 Series Spare Power Supply List Price:$500
PWR-C1-440WDC/2 - 440W DC Config 1 secondary Power Supply
Cisco C9300L-STACK-KIT Stack Kit for C9300L SKUs Module – includes 2 Stack Adaptors and 1 Stack Cable List Price: Updating...
STACK-T3-50CM Cisco 50CM Type 3 Stacking Cable – default with Stack Kit for C9300L SKUs
List Price: Updating...
Module quang Cisco SFP GLC-LH-SMD 1000BASE-LX/LH Transceiver module, Single Mode, 1310nm, DOM, 10KM
List Price:$995
Module quang OEM Multimode SFP-1G-MM 1.25G SFP 850nm 550m MMF LC sử dụng cho switch, router Cisco, Juniper, Fortinet, HPE...
List Price: Updating...
Module quang OEM Single mode SFP-1G-20KM 1.25G 1310nm 20km Dual LC sử dụng cho các thiết bị switch, router Cisco, Juniper, HPE, Fortinet...
List Price: Updating...
Giấy phép bản quyền Switch Cisco C9300L-DNA-P-48-3Y C9300L Cisco DNA Premier, 48-port, 3 Year Term license List Price: Updating...
Giấy phép bản quyền Switch Cisco C9300L-DNA-P-48-5Y C9300L Cisco DNA Premier, 48-port, 5 Year Term license List Price: Updating...
Giấy phép bản quyền Switch Cisco C9300L-DNA-A-48-3Y C9300L Cisco DNA Advantage, 48-port, 3 Year Term license List Price: Updating...
Giấy phép bản quyền Switch Cisco C9300L-DNA-A-48-5Y C9300L Cisco DNA Advantage, 48-port, 5 Year Term license List Price: Updating...
Giấy phép bản quyền Switch Cisco C9300L-LIC Electronic Cisco DNA Upgrade License for C9300L switches. Note: when upgrading from Cisco DNA Essentials to Cisco DNA Advantage, Network Essentials is also upgraded to Network Advantage List Price: Updating...
