Switch Cisco C1000-24FP-4X-L 24 Cổng Gigabit.

Name: C1000-24FP-4X-L
Brand: CISCO
SKU: C1000-24FP-4X-L
Availability: InStock
Rating: 5 (3 reviews)

Cisco Part Number	:
List Price	: $
Giá bán	:
Bảo hành	:
Made In	:
Stock	:

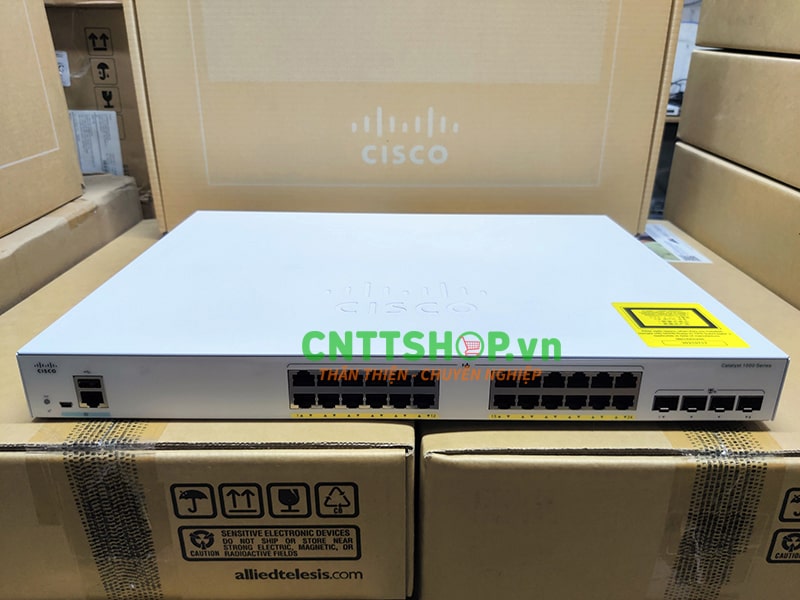

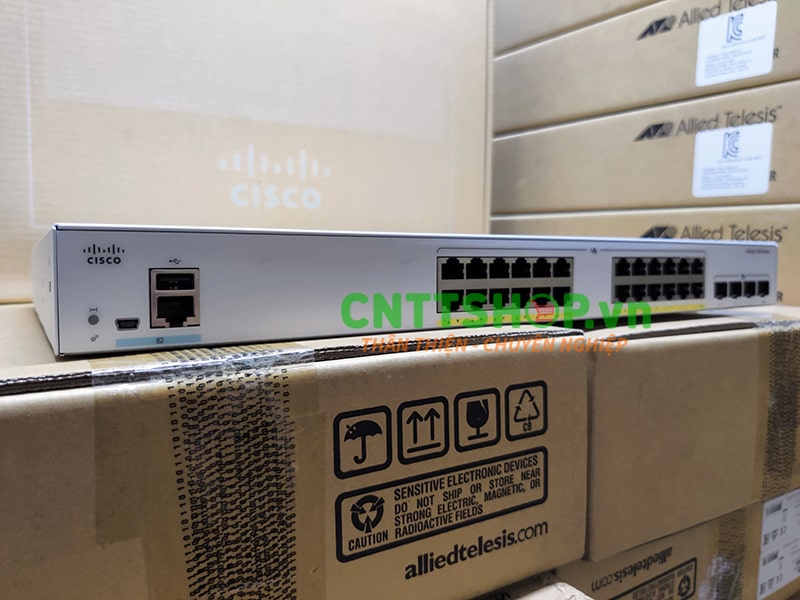

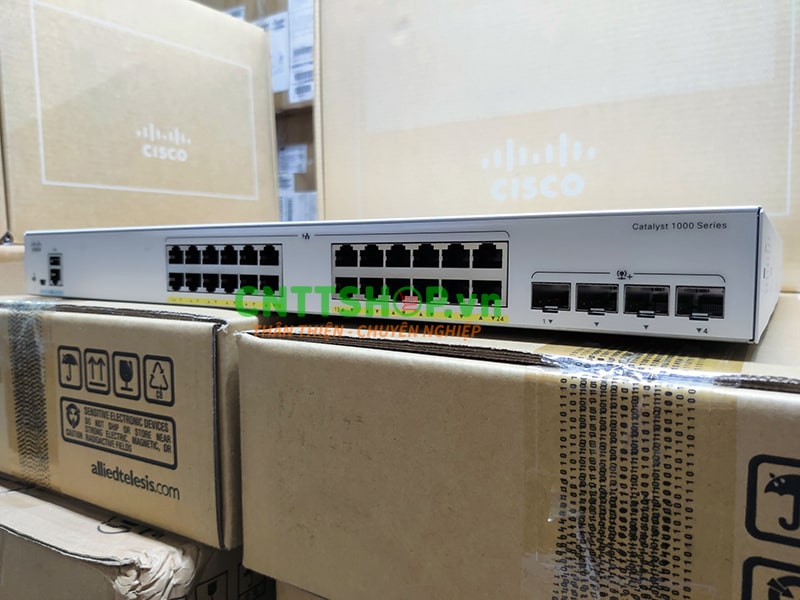

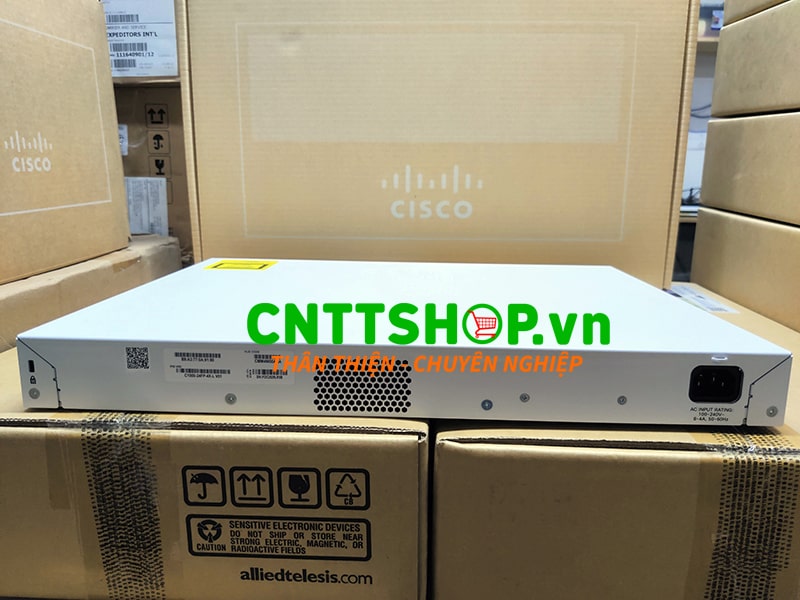

Tổng quan Switch Cisco C1000-24FP-4X-L

Thiết bị chuyển mạch Switch Cisco C1000-24FP-4X-L được thiết kế cho doanh nghiệp vừa và nhỏ, với giá rẻ hơn các dòng switch 2960x. C1000-24FP-4X-L với 24 cổng Gigabit 10/100/1000, 4 cổng uplink sử dụng Module quang 10GE, cung cấp các kết nối Layer trong hệ thống mạng.

View Datasheet C1000-24FP-4X-L

Switch Cisco C1000-24FP-4X-L 24 Cổng Gigabit Switch Cisco C1000-24FP-4X-L được thiết kế không quạt, có thể được triển khai ngay tại nơi làm việc mà không ảnh hưởng tới môi trường xung quanh.

Thông số kỹ thuật Switch Cisco C1000-24FP-4X-L

Description	Performance
Hardware
Interface	24x 10/100/1000 Ethernet ports, 4x 10G SFP uplinks
PoE power budget	370W
Available PoE power per port	30W for any 8 ports or 15W for 24 ports
Console ports	1x RJ-45 Ethernet USB mini-B USB-A port for storage and Bluetooth console
Indicator LEDs	Per-port status: link integrity, disabled, activity System status: system
Dimensions (WxDxH in inches)	17.5 x 9.45 x 1.73
Weight	2.78
Memory and processor
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Performance
Forwarding bandwidth	64 Gbps
Switching bandwidth	128 Gbps
Forwarding rate (64‑byte L3 packets)	41.67 Mpps
Unicast MAC addresses	15,360
IPv4 unicast direct routes	542
IPv4 unicast indirect routes	256
IPv6 unicast direct routes	414
IPv6 unicast indirect routes	128
IPv4 static routes	16
IPv6 static routes	16
IPv4 multicast routes and IGMP groups	1024
IPv6 multicast groups	1024
IPv4/MAC security ACEs	600
IPv6 security ACEs	600
Maximum active VLANs	256
VLAN IDs available	4094
Maximum STP instances	64
Maximum SPAN sessions	4
MTU-L3 packet	9198 bytes
Jumbo Ethernet frame	10,240 bytes
Ingress protection	IP20
Dying Gasp	Yes
Electrical
Power	Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Voltage (auto ranging)	110 to 220V AC in
Frequency	50 to 60 Hz
Current	0.20A to 0.33A
Power rating (maximum consumption)	0.06 kVA
Safety and compliance
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
EMC: Emissions	47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
EMC: Immunity	EN55024 (including EN 61000-4-5), CISPR24, EN300386, KN24
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. government certifications	TBD
