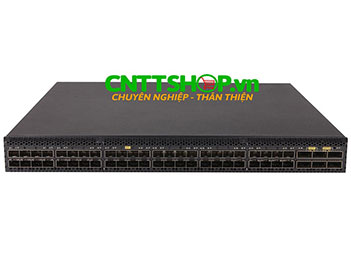

HPE JL585A FlexFabric 5710 48SFP+ 6QSFP+ or 2QSFP28 Switch

48 1/10G SFP+ ports

6 x 40GbE ports or 3 x 40GbE ports and 1 x 100G port or 2 x 100GbE por

Management ports: 1 10M/100M/1000MBASE-T copper port, 1 SFP port
Console ports: 1 mini USB console port, 1 serial console port

2  power supply slots

1 minimum power supply required (ordered separately).

Power supplies are hot swappable.

For 1:1 redundancy this system requires two same-type power supplies to function properly

4 fan tray slots

The customer must order fan trays, as they are not included with the switch. This system requires four same-direction airflow fan trays to function properly. A failed fan tray must be replaced immediately. Fans are hot swappable

Dimensions: 44 mm x 440 mm x 400 mm (1.73 in. x 17.32 in. x 15.75 in.) (1U height)
Weight: 10 kg (22.05 lb)

10  Gbps Latency  (64-byte packets)
Throughput up to 1071 Mpps
Switching capacity: 1440 Gbps
Routing table size: 16K entries (IPv4), 8K entries (IPv6)
MAC address table size: 208K entries
ARP table Size: 68K (1K static)

MTBF (years): 135.90

Operating temperature: 32°F to 113°F (0°C to 45°C)
Operating relative humidity: 10% to 90%, noncondensing
Acoustic:Low-speed fan:  52.5 dB; high-speed fan: 68.7 dB

Frequency: 50/60 Hz
Maximum heat dissipation: 607 BTU/hr
Voltage: 100 - 240 VAC, rated
Maximum power rating: 100 VAC-240 VAC; Max. voltage: 264 VAC @ 50 Hz/60 Hz
Max. output power: 250W / 450W depending on PSU selected
Idle power: 74W / 108W
Max. output power: 250W

Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
