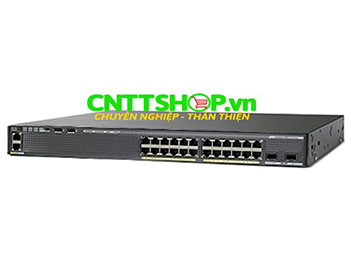

Switch Cisco WS-C2960XR-24PD-I 24 GigE PoE 370W, 2 x 10G SFP+, IP Lite

Switch Cisco WS-C2960XR-24PD-I Catalyst 2960-XR 24 Ports 10/100/1000 Ethernet PoE+ 370W, 2 x 10G SFP+ Slot Uplink, IP Lite

Mã sản phẩm: WS-C2960XR-24PD-I



CHI TIẾT

Switch Cisco WS-C2960XR-24PD-I Catalyst 2960-XR 24 GigE PoE 370W, 2 x 10G SFP+, IP Lite

Cisco Part Number                : WS-C2960XR-24PD-I
Cisco Spare Part Number     : WS-C2960XR-24PD-I​=
List Price                               : $6,495

Bảo hành                               : 12 tháng
Made In                                 : ASIA

Switch Cisco 2960X WS-C2960XR-24PD-I là thiết bị chuyển mạch Gigabit Ethernet có cấu hình cố định, cung cấp khả năng truy cập cấp doanh nghiệp cho các ứng dụng trong các doanh nghiệp hoặc trường học. Switch Cisco 2960X WS-C2960XR-24PD-I cung cấp khả năng tích hợp, cấu hình, theo dõi và khắc phục sự cố thiết bị dễ dàng.

 View Datasheet

Switch Cisco 2960XR WS-C2960XR-24PD-I được thiết kế để phù hợp với lớp Accees (lớp truy nhập mạng đầu cuối) với chi phí đầu tư là thấp trong dòng Switch 2960XR Series. Switch Cisco WS-C2960XR-24PD-I cung cấp 24 cổng Giga 10/100/1000 Mps Base-T POE với 02 Uplink GE SFP+ để kết nối đường quang Multimode hoặc Single Mode. WS-C2960XR-24PD-I sử dụng điện AC 220V.

Switch Cisco WS-C2960XR-24PD-I

Thông số kỹ thuật chi tiết của WS-C2960XR-24PD-I

Hardware specifications

Flash Memory

128 MB

DRAM

512 MB

CPU

APM86392 600 MHz dual core

Console ports

USB (Type B), Ethernet (RJ-45)

Storage interface

USB (Type A) for external flash storage

Network management interface

10/100 Mbps Ethernet (RJ-45)

Interface

24 10/100/1000 Ethernet ports PoE, PoE+

Uplink interfaces

2 x 10Gb SFP+

Performance and scalability

Forwarding bandwidth

108 Gbps

Switching bandwidth

216 Gbps

Maximum active VLANs

1023

VLAN IDs available

4096

Maximum Transmission Unit (MTU)-L3 packet

9198 bytes

Jumbo frame - Ethernet frame

9216 bytes

Forwarding rate: 64-byte Layer 3 packets

95.2 Mpps

Scalability (Default/VLAN/IPv4)

Unicast MAC

16,000 / 32,000 / 16,000

IPv4 unicast direct routes

4000 / 250 / 16,000

IPv4 unicast indirect routes

1250 / 250 / 8000

IPv6 unicast direct routes

4000 / 250 / 0

IPv6 unicast indirect routes

1250 / 250 / 0

IPv4 multicast routes and IGMP groups

1000 / 1000 / 1000

IPv6 multicast groups

1000 / 1000 / 0

IPv4 QoS ACEs

500 / 500 / 500

IPv6 QoS ACEs

250 / 500 / 0

IPv4 security ACEs

1000 / 1000 / 875

IPv6 Security ACEs

500 / 500 / 0

IPv4 policy-based routing ACEs

500 / 0 / 375

Voltage and power ratings

Predicted reliability (MTBF in hours**)

322,740

Power rating

0.46KVA

Input voltage and current

90 to 264 VAC /  6A to 3 A / 50 to 60 Hz

PoE and PoE+ power capacity

12 ports up to 30W, 24 ports up to 15.4W

Available PoE power

370W

Dimensions

Inches (H x D x W)

1.75 x 16.0x 17.5

Centimeters (H x D x W)

4.45 x 40.8 x 44.5

Pounds

13.6

Kilograms

6.2

Environmental ranges

Operating temperature up to 10,000 ft (3000 m)

23º to 113ºF / -5º to 45ºC

Operating altitude (Feet/Meters)

Up to 10,000/Up to 3000

Operating relative humidity

10% to 95% noncondensing

Safety and compliance (Safety)

UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1

Các Module quang dưới đây có thể sử dụng cho Switch Cisco WS-C2960XR-24PD-I

Các module quang 1G Cisco cho WS-C2960XR-24PD-I

GLC-T

Module quang Cisco GLC-T 1000BASE-T, RJ-45 connector

GLC-TE

Module quang Cisco GLC-TE 1000BASE-T, RJ-45 connector

GLC-SX-MMD

Module quang Cisco GLC-SX-MMD 1000BASE-SX, MMF, DOM, 850 nm, 550m, Dual LC

GLC-LH-SMD

Module quang Cisco GLC-LH-SMD 1000BASE-LX/LH, MMF/SMF DOM, 1310 nm, 10km, Dual LC

GLC-EX-SMD

Module quang Cisco GLC-EX-SMD 1000BASE-EX, SMF, DOM, 1310 nm, 40km, Dual LC

GLC-ZX-SMD

Module quang Cisco GLC-ZX-MMD 1000BASE-ZX, SMF, DOM, 1550 nm, 80km, Dual LC

GLC-SX-MM

Module quang Cisco GLC-SX-MM 1000BASE-SX, MMF, 850 nm, 550m, Dual LC

GLC-LH-SM

Module quang Cisco GLC-LH-SM 1000BASE-LX/LH, MMF/SMF, 1310 nm, 10km, Dual LC

GLC-ZX-SM

Module quang Cisco GLC-ZX-SM 1000BASE-ZX, SMF, 1550 nm, 80km, Dual LC

GLC-BX-D

Module quang Cisco GLC-BX-D 1000BASE-BX, SMF, 1490TX 1310RX, Single LC

GLC-BX-U

Module quang Cisco GLC-BX-D 1000BASE-BX, SMF, 1310TX 1490RX, Single LC

GLC-BX40-D-I

Module quang Cisco 1000BASE-BX40 SFP, 1550NM

GLC-BX40-U-I

Module quang Cisco 1000BASE-BX40 SFP, 1310NM

GLC-BX40-DA-I

Module quang Cisco 1000BASE-BX40 SFP, 1490NM

GLC-BX80-D-I

Module quang Cisco 1000BASE-BX80 SFP, 1570NM

GLC-BX80-U-I

Module quang Cisco 1000BASE-BX80 SFP, 1490NM

GLC-2BX-D

Module quang Cisco GLC-2BX-D 1000BASE-BX10, SMF, 1310TX 1490RX, 2 single LC/PC

SFP-GE-T

Module quang Cisco GLC-T 1000BASE-T, RJ-45 connector

SFP-GE-S

Module quang CiscoSFP-GE-S 1000BASE-SX, MMF, DOM, 850 nm, 550m

SFP-GE-L

Module quang Cisco SFP-GE-L 1000BASE-LX/LH, MMF/SMF DOM, 1300 nm, 10km, Dual LC

SFP-GE-Z

Module quang Cisco SFP-GE-Z 1000BASE-ZX, SMF, 1550 nm, 80km, Dual LC

GLC-SX-MM-RGD

Module quang Cisco GLC-SX-MM-RGD 1000BASE-SX, MMF, 850 nm, 550m, Dual LC, industrial

GLC-LX-SM-RGD

Module quang Cisco GLC-LX-SM-RGD 1000BASE-LX/LH, MMF/SMF, 1300 nm, 10km, Dual LC, industrial

GLC-ZX-SM-RGD

Module quang Cisco GLC-ZX-SM-RGD 1000BASE-ZX, SMF, 1550 nm, 80km, Dual LC, industrial

SFP-GPON-B

Module quang SFP-GPON-B GPON Class B+ SFP OLT, 1490TX 1310RX

SFP-GPON-C

Module quang SFP-GPON-C GPON Class C+ SFP OLT 1490TX 1310RX

SFP-GPON-B-I

Module quang SFP-GPON-B GPON Class B+ SFP OLT, 1490TX 1310RX, industrial

SFP-GPON-C-I

Module quang SFP-GPON-C GPON Class C+ SFP OLT 1490TX 1310RX, industrial

Các module quang 10G Cisco dùng cho  WS-C2960XR-24PD-I

SFP-10G-SR-S

10GBASE-SR SFP Module, Enterprise-Class

SFP-10G-SR

10GBASE-SR SFP Module

SFP-10G-LR-S

10GBASE-LR SFP Module, Enterprise-Class

SFP-10G-LRM

10GBASE-LRM SFP Module

SFP-10G-LR

10GBASE-LR SFP Module

SFP-10G-ER-S

10GBASE-ER SFP Module, Enterprise-Class

SFP-10G-ER

Cisco 10GBASE-ER SFP+ Module for SMF

SFP-10G-ZR-S

10GBASE-ZR SFP Module, Enterprise-Class

SFP-10G-ZR

Cisco 10GBASE-ZR SFP10G Module for SMF

SFP-10G-BXU-I=

SFP+ Bidirectional for 10km, upstream

SFP-10G-BXD-I=

SFP+ Bidirectional for 10km, downstream

SFP-10G-BX40U-I

SFP+ Bidirectional for 40km, upstream

SFP-10G-BX40D-I

SFP+ Bidirectional for 40km, downstream

SFP-10G-AOC7M

10GBASE Active Optical SFP+ Cable, 7M

SFP-10G-AOC5M

10GBASE Active Optical SFP+ Cable, 5M

SFP-10G-AOC3M

10GBASE Active Optical SFP+ Cable, 3M

SFP-10G-AOC2M

10GBASE Active Optical SFP+ Cable, 2M

SFP-10G-AOC1M

10GBASE Active Optical SFP+ Cable, 1M

SFP-10G-AOC10M

10GBASE Active Optical SFP+ Cable, 10M

Các module quang OEM giá rẻ sử dụng được cho WS-C2960XR-24PD-I

Part Depcription
GLC-LH-SMD-CL OEM GLC-LH-SMD 1000BASE-LX/LH, MMF/SMF DOM, 1310 nm, 10km, Dual LC
GLC-SX-MMD-CL OEM GLC-SX-MMD 1000BASE-SX, MMF, DOM, 850 nm, 550m, Dual LC
GLC-EX-SMD-CL OEM GLC-EX-SMD 1000BASE-EX, SMF, DOM, 1310 nm, 40km, Dual LC
GLC-T-CL OEM GLC-T 1000BASE-T, RJ-45 connector
GLC-LH-SM-CL OEM GLC-T 1000BASE-T, RJ-45 connector
GLC-LH-SM-CL OEM GLC-LH-SMD 1000BASE-LX/LH, MMF/SMF DOM, 1310 nm, 10km, Dual LC
GLC-SX-MM-CL OEM GLC-SX-MM 1000BASE-SX, MMF, 850 nm, 550m, Dual LC

Các loại nguồn  dùng cho Switch Cisco WS-C2960XR-24PD-I

Part Number

Description

PWR-C2-640WAC

Second FRU power supply and fan for all 370W PoE+ 2960-XR switches, provides 640W AC of power

Các Stack Module, Stack  dùng cho Switch Cisco C2960XR

Part Number

Description

C2960X-STACK

FlexStack-Plus hot-swappable stacking module

C2960X-FIBER-STK

FlexStack-Extended Fiber stacking module

C2960X-HYBRID-STK

FlexStack-Extended Hybrid module, with one copper and one fiber port

CAB-STK-E-0.5M

Stacking cable with a 0.5 m length

CAB-STK-E-1M

Stacking cable with a 1.0 m length

CAB-STK-E-3M

Stacking cable with a 3.0 m length

Để có cấu hình, yêu cầu kỹ thuật chi tiết của Switch WS-C2960XR-24PD-I cho vào hồ sơ tư vấn, thiết kế kỹ thuật hoặc cho vào hồ sơ mời thầu, quý khách vui lòng gửi email yêu cầu đến kinhdoanh@cnttshop.vn
