WS-C3650-12X48UR-L Cisco Catalyst 3650 48 Ports UPOE (12 mGig) 8x10G Uplink LAN Base

Switch Cisco WS-C3650-12X48UR-L Catalyst 3650 Stacking 48 Ports UPOE 660W (36 10/100/1000 and 12 100Mbps/1/2.5/5/10 Gbps) 8x10G Uplink, 1100WAC PS, LAN Base

Mã sản phẩm: WS-C3650-12X48UR-L



CHI TIẾT

Switch Cisco WS-C3650-12X48UR-L 48 Ports UPOE 660W (12 mGig) 8x10G Uplink, LAN Base

Cisco Part Number                : WS-C3650-12X48UR-L
Cisco Spare Part Number     : WS-C3650-12X48UR-L​=
List Price                               : $14,000

Bảo hành                               : 12 tháng
Made In                                 : ASIA

Switch Cisco WS-C3650-12X48UR-L là thế hệ tiếp theo của các thiết bị chuyển mạch lớp truy cập độc lập và stackable lớp doanh nghiệp, cung cấp nền tảng cho sự hội tụ đầy đủ giữa có dây và không dây trên một nền tảng duy nhất. Switch Cisco WS-C3650-12X48UR-L được xây dựng trên Cisco StackWise®-160 nâng cao và tận dụng lợi thế của Cisco Unified Access ™ Data Plane (UADP) - ASIC. Switch Cisco WS-C3650-12X48UR-L có thể cho phép thực thi chính sách không dây có dây đồng bộ, khả năng hiển thị ứng dụng, tính linh hoạt, tối ưu hóa ứng dụng và khả năng phục hồi cao.

View Datasheet

Switch Cisco WS-C3650-12X48UR-L được thiết kế để phù hợp với lớp Aggregation / Distribution  (Lớp trung gian, Lớp phân phối) hoặc lớp Core (Lớp lõi). Switch Cisco WS-C3650-12X48UR-L cung cấp 48 (36 10/100/1000 and 12 100Mbps/1/2.5/5/10 Gbps) Ethernet and 8x10G Uplink ports, 1100WAC PS, 1 RU, LAN Base. Switch cisco WS-C3650-12X48UR-L sử dụng nguồn điện AC 220V.

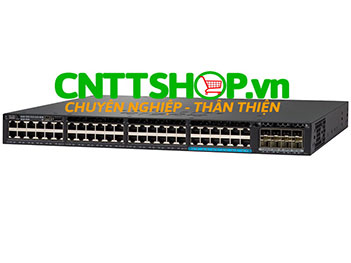

 Switch Cisco WS-C3650-12X48UR-L

Hình ảnh Cisco WS-C3650-12X48UR-L được cnttshop cung cấp

Thông số kỹ thuật chi tiết của WS-C3650-12X48UR-L

Hardware Specifications

 10/100/1000 Ethernet Ports

48 UPOE (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports)

Fixed Uplinks

8 x 10 Gigabit Ethernet with SFP+ or 8 x Gigabit Ethernet with SFP

Default AC Power Supply

1100 WAC

Available PoE Power

660 W

Performance Specifications

Switching capacity

92 Gbps

Stacking bandwidth

160 Gbps

Total number of MAC addresses

32,000

Total number of IPv4 routes (ARP plus learned routes)

24,000

FNF entries

48,000 flows

DRAM

4 GB

Flash

2 GB

VLAN IDs

4,094

Total switched virtual interfaces (SVIs)

1,000

Jumbo frame

9198 bytes

Total routed ports per 3650 stack

208

Wireless

Number of access points per switch/stack

25

Number of wireless clients per switch/stack

1000

Total number of WLANs per switch

64

Wireless bandwidth per switch

Up to 40 Gbps

Supported Aironet access point series

3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040

Forwarding Rate

351.19 Mpps

Dimensions

Dimensions (H x W x D) (Inches/Centimeters)

1.73 x 17.5 x 19.125/4.4 x 44.5 x 48.6

Weight (Pounds/Kilograms)

17.80/8.08

MTBF Hours

201,680

Environmental Ranges

With AC Power Supply

Operating Environment and Altitude

-5ºC to +45ºC, up to 5000 feet (1500m)

-5ºC to +40ºC, up to 10,000 feet (3000m)

-5ºC to +35ºC, up to 13,000 feet (4000m)

-5ºC to +30ºC, up to 16,400 feet (5000m)

With DC Power Supply

Operating Environment and Altitude (NEBS)

 -5ºC to +45ºC, up to 5000 feet (1500m)

-5ºC to +45ºC, up to 10,000 feet (3000m)

Safety and Compliance

Safety Certifications

UL 60950-1 Second Edition

CAN/CSA-C22.2 No. 60950-1 Second Edition

EN 60950-1 Second Edition

IEC 60950-1 Second Edition

GOST

NOM (obtained by partners and distributors)

Electromagnetic Emissions Certifications

47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)

AS/NZS CISPR22 Class A

CISPR22 Class A

EN55022 Class A

ICES003 Class A

VCCI Class A

EN61000-3-2

EN61000-3-3

KN22 Class A

KCC

CNS13438 Class A

EN55024

CISPR24

KN24

Các loại cable stack có thể sử dụng cho Cisco Switch WS-C3650-12X48UR-L

C3650-STACK-KIT=

Cisco Catalyst 3650 Stack Module spare

STACK-T2-50CM=

Cisco StackWise-160 50CM Stacking Cable Spare

STACK-T2-1M=

Cisco StackWise-160 1M Stacking Cable Spare

STACK-T2-3M=

Cisco StackWise-160 3M Stacking Cable Spare

STACK-T2-BLANK=

Cisco Catalyst 3650 Stacking Blank Spare

Các module quang dưới đây có thể sử dụng cho Switch WS-C3650-12X48UR-L

Module quang Cisco 1G dùng cho WS-C3650-12X48UR-L

GLC-T

Module quang Cisco GLC-T 1000BASE-T, RJ-45 connector

GLC-TE

Module quang Cisco GLC-TE 1000BASE-T, RJ-45 connector

GLC-SX-MMD

Module quang Cisco GLC-SX-MMD 1000BASE-SX, MMF, DOM, 850 nm, 550m, Dual LC

GLC-LH-SMD

Module quang Cisco GLC-LH-SMD 1000BASE-LX/LH, MMF/SMF DOM, 1310 nm, 10km, Dual LC

GLC-EX-SMD

Module quang Cisco GLC-EX-SMD 1000BASE-EX, SMF, DOM, 1310 nm, 40km, Dual LC

GLC-ZX-SMD

Module quang Cisco GLC-ZX-MMD 1000BASE-ZX, SMF, DOM, 1550 nm, 80km, Dual LC

GLC-SX-MM

Module quang Cisco GLC-SX-MM 1000BASE-SX, MMF, 850 nm, 550m, Dual LC

GLC-LH-SM

Module quang Cisco GLC-LH-SM 1000BASE-LX/LH, MMF/SMF, 1310 nm, 10km, Dual LC

GLC-ZX-SM

Module quang Cisco GLC-ZX-SM 1000BASE-ZX, SMF, 1550 nm, 80km, Dual LC

GLC-BX-D

Module quang Cisco GLC-BX-D 1000BASE-BX, SMF, 1490TX 1310RX, Single LC

GLC-BX-U

Module quang Cisco GLC-BX-D 1000BASE-BX, SMF, 1310TX 1490RX, Single LC

GLC-BX40-D-I

Module quang Cisco 1000BASE-BX40 SFP, 1550NM

GLC-BX40-U-I

Module quang Cisco 1000BASE-BX40 SFP, 1310NM

GLC-BX40-DA-I

Module quang Cisco 1000BASE-BX40 SFP, 1490NM

GLC-BX80-D-I

Module quang Cisco 1000BASE-BX80 SFP, 1570NM

GLC-BX80-U-I

Module quang Cisco 1000BASE-BX80 SFP, 1490NM

GLC-2BX-D

Module quang Cisco GLC-2BX-D 1000BASE-BX10, SMF, 1310TX 1490RX, 2 single LC/PC

SFP-GE-T

Module quang Cisco GLC-T 1000BASE-T, RJ-45 connector

SFP-GE-S

Module quang CiscoSFP-GE-S 1000BASE-SX, MMF, DOM, 850 nm, 550m

SFP-GE-L

Module quang Cisco SFP-GE-L 1000BASE-LX/LH, MMF/SMF DOM, 1300 nm, 10km, Dual LC

SFP-GE-Z

Module quang Cisco SFP-GE-Z 1000BASE-ZX, SMF, 1550 nm, 80km, Dual LC

GLC-SX-MM-RGD

Module quang CiscoGLC-SX-MM-RGD 1000BASE-SX, MMF, 850 nm, 550m, Dual LC, industrial

GLC-LX-SM-RGD

Module quang Cisco GLC-LX-SM-RGD 1000BASE-LX/LH, MMF/SMF, 1300 nm, 10km, Dual LC, industrial

GLC-ZX-SM-RGD

Module quang Cisco GLC-ZX-SM-RGD 1000BASE-ZX, SMF, 1550 nm, 80km, Dual LC, industrial

Module quang Cisco 10G dùng cho WS-C3650-12X48UR-L

SFP-10G-SR-S

10GBASE-SR SFP Module, Enterprise-Class

SFP-10G-SR

10GBASE-SR SFP Module

SFP-10G-LR-S

10GBASE-LR SFP Module, Enterprise-Class

SFP-10G-LRM

10GBASE-LRM SFP Module

SFP-10G-LR

10GBASE-LR SFP Module

SFP-10G-ER-S

10GBASE-ER SFP Module, Enterprise-Class

SFP-10G-ER

Cisco 10GBASE-ER SFP+ Module for SMF

SFP-10G-ZR-S

10GBASE-ZR SFP Module, Enterprise-Class

SFP-10G-ZR

Cisco 10GBASE-ZR SFP10G Module for SMF

SFP-10G-BXU-I=

SFP+ Bidirectional for 10km, upstream

SFP-10G-BXD-I=

SFP+ Bidirectional for 10km, downstream

SFP-10G-BX40U-I

SFP+ Bidirectional for 40km, upstream

SFP-10G-BX40D-I

SFP+ Bidirectional for 40km, downstream

SFP-10G-AOC7M

10GBASE Active Optical SFP+ Cable, 7M

SFP-10G-AOC5M

10GBASE Active Optical SFP+ Cable, 5M

SFP-10G-AOC3M

10GBASE Active Optical SFP+ Cable, 3M

SFP-10G-AOC2M

10GBASE Active Optical SFP+ Cable, 2M

SFP-10G-AOC1M

10GBASE Active Optical SFP+ Cable, 1M

SFP-10G-AOC10M

10GBASE Active Optical SFP+ Cable, 10M

Các module quang OEM giá rẻ sử dụng được cho Switch Cisco WS-C3650-12X48UR-L:

GLC-T-CL

OEM Cisco GLC-T 1000BASE-T, RJ-45 connector

GLC-SX-MM-Cl

OEM Cisco GLC-SX-MM 1000BASE-SX, MMF, 850 nm, 550m, Dual LC

GLC-ZX-SM-CL

OEM Cisco GLC-ZX-SM 1000BASE-ZX, SMF, 1550 nm, 80km, Dual LC

GLC-ZX-SMD-CL

OEM Cisco GLC-ZX-MMD 1000BASE-ZX, SMF, DOM, 1550 nm, 80km, Dual LC

GLC-BX-D-CL

OEM Cisco GLC-BX-D 1000BASE-BX, SMF, 1310TX 1490RX, Single LC

GLC-BX-U-CL

OEM Cisco GLC-BX-U 1000BASE-BX, SMF, 1310TX 1490RX, Single LC

GLC-LH-SM-CL

OEM Cisco GLC-LH-SM 1000BASE-LX/LH, MMF/SMF, 1310 nm, 10km, Dual LC

GLC-SX-MMD-CL

OEM Cisco GLC-SX-MMD 1000BASE-SX, MMF, DOM, 850 nm, 550m, Dual LC

GLC-LH-SMD-CL

OEM Cisco GLC-LH-SMD 1000BASE-LX/LH, MMF/SMF, 1310 nm, 10km, Dual LC

GLC-EX-SMD-CL

OEM Cisco GLC-EX-SMD 1000BASE-EX, SMF, DOM, 1310 nm, 40km, Dual LC

SFP-GE-S

OEM CiscoSFP-GE-S 1000BASE-SX, MMF, DOM, 850 nm, 550m

SFP-GE-L

OEM Cisco SFP-GE-L 1000BASE-LX/LH, MMF/SMF DOM, 1300 nm, 10km, Dual LC

SFP-GE-Z

OEM Cisco SFP-GE-Z 1000BASE-ZX, SMF, 1550 nm, 80km, Dual LC

Các loại nguồn sử dụng cho Switch Cisco WS-C3650-12X48UR-L:

Part Mô tả
PWR-C1-1100WAC 1100W AC Catalyst 3650 Series Spare Power Supply
341-0561-01 A0 1100W AC Catalyst 3650 Series Spare Power Supply
PA-1112-1A-LF 1100W AC Catalyst 3650 Series Spare Power Supply

License có thể sử dụng cho Cisco Switch WS-C3650-12X48UR-L

Feature License and Software Options

C3650-RTU=

Paper SW License for Cisco Catalyst 3650 Switches

L-C3650-RTU=

Electronic SW License for Cisco Catalyst 3650 Switches

C3650-48-L-E

Cisco Catalyst 3650 48-port LAN Base to IP Services Paper RTU License

C3650-48-L-S

Cisco Catalyst 3650 48-port LAN Base to IP Base Paper RTU License

L-C3650-48-L-S

Cisco Catalyst 3650 48-port Switch LAN Base to IP Base Electronic RTU License

L-C3650-48-L-E

Cisco Catalyst 3650 48-port Switch LAN Base to IP Services Electronic RTU License

Access Point Licenses

L-LIC-CT3650-UPG

Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery)

L-LIC-CTIOS-1A

1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)

LIC-CT3650-UPG

Primary upgrade license SKU for Cisco 3650 wireless controller (paper license)

LIC-CTIOS-1A

1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
