Interface
|
48 Ports 10/100/1000 RJ45 PoE+ 890W, 4x 10G SFP+ uplinks
|
|
Switching capacity
|
176 Gbps
|
|
Stacking bandwidth
|
320 Gbps
|
|
Switching capacity with stacking
|
496 Gbps
|
|
Forwarding rate
|
130.95 Mpps
|
|
Forwarding rate with stacking
|
369.05 Mpps
|
|
Total number of MAC addresses
|
32,000
|
|
Total number of IPv4 routes (ARP plus learned routes)
|
32,000 (24,000 direct routes and 8000 indirect routes)
|
|
IPv4 routing entries
|
32,000
|
|
IPv6 routing entries
|
16,000
|
|
Multicast routing scale
|
8000
|
|
QoS scale entries
|
5120
|
|
ACL scale entries
|
5120
|
|
Packet buffer per SKU
|
16 MB buffer
|
|
FNF entries
|
64,000 flow
|
|
DRAM
|
8 GB
|
|
Flash
|
16 GB
|
|
VLAN IDs
|
4094
|
|
Total Switched Virtual Interfaces (SVIs)
|
1000
|
|
Jumbo frames
|
9198 bytes
|
|
Total routed ports per 9300 Series stack
|
416
|
| Feature |
|
Switch fundamentals
|
Layer 2, Routed Access (RIP, EIGRP Stub, OSPF - 1000 routes), PBR, PIM Stub Multicast (1000 routes)), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1X, MACsec-128, CoPP, SXP, IP SLA Responder, SSO
|
|
Advanced switch capabilities and scale
|
BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM-BIDIR, IP SLA, OSPF
|
|
Network segmentation
|
VRF, VXLAN, LISP, SGT, MPLS, mVPN
|
|
Automation
|
NETCONF, RESTCONF, gRPC, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python)
|
|
Telemetry and visibility
|
Model-driven telemetry, sampled NetFlow, SPAN, RSPAN
|
|
High availability and resiliency
|
Nonstop Forwarding (NSF), Graceful Insertion and Removal (GIR), Fast Software Upgrade (FSU)
|
|
IOT integration
|
AVB, PTP, CoAP
|
|
Security
|
MACsec-256
|
|
Dimensions, Weight, and Mean Time Between Failures Metrics
|
|
Dimensions (H x W x D)
|
1.73 x 17.5 x 19.2 x inch/4.4 x 44.5 x 48.8 cm
|
|
Weight
|
15.48 Pounds / 7.03 Kilograms
|
|
Mean time between failures (hours)
|
298,880
|
|
Default AC power supply
|
1100W
|
|
Available PoE power
|
890W
|
Switch
.png){kind=icon}
.png){kind=logo}
.jpg)

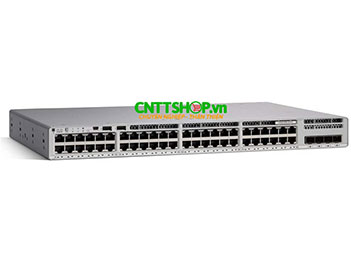

Bạn đang cần tư vấn về sản phẩm: C9300L-48PF-4X-A ?
Switch Cisco Catalyst 9300 series C9300L-48PF-4X-A lắp được tối đa 2 nguồn, có sẵn 1 nguồn đi kèm thiết bị anh nhé
Module quang SFP-10G-LR dùng được cho Switch Cisco C9300L-48FP-4X-A bạn nhé
Phụ kiện đi kèm theo thiết bị chuyển mạch Switch Cisco Catalyst 9300 series C9300L-48PF-4X-A 48-port fixed uplinks Full PoE+, 4X10G uplinks, Network Advantage bao gồm tai rack, dây nguồn và nguồn bạn nhé
Thiết bị chuyển mạch Switch C9300L-48PF-4X-A Cisco Catalyst 9300 48-port fixed Full PoE+, Network Advantage xuất xứ China bạn nhé
Thiết bị chuyển mạch Switch Cisco C9300L-48PF-4X-A có thể sử dụng đồng thời module single mode và multi mode bạn nhé
