| Performance |
| Switching capacity |
1280 Gbps |
| Stacking bandwidth |
480 Gbps |
| Total number of MAC addresses |
32,000 |
| Total number of IPv4 routes (ARP plus learned routes) |
24,000 |
| FNF entries |
96,000 flows |
| DRAM |
8 GB |
| Flash |
8 GB |
| VLAN IDs |
4,000 |
| Total Switched Virtual Interfaces (SVIs) |
1,000 |
| Jumbo frame |
9198 bytes |
| Total routed ports per 3850 stack |
208 |
| Forwarding rate |
909 Mpps |
| Wireless |
| Number of access points per switch/stack |
100 |
| Number of wireless clients per switch/stack |
2000 |
| Total number of WLANs per switch |
64 |
| Wireless bandwidth per switch |
Up to 40 Gbps |
| Supported Aironet access point series |
3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Dimensions, weight, acoustic, MTBF, and environmental range |
| Dimensions (H x W x D) |
1.75 x 17.5 x 20.1 Inches (4.45 X 44.5 x 51.1 Centimet) |
| Weight |
16.42 Pounds (7.45 Kilograms) |
| MTBF hours |
286,900 |
| Available PoE power |
- |
| POE budget with 1100W secondary PS |
- |
| Environmental ranges |
|
With DC power supply
Operating environment and altitude (NEBS)
|
Normal operating temperature and altitudes:
- -5ºC to +45ºC, up to 6000 feet (1800m)
- -5ºC to +40ºC, up to 10,000 feet (3000m)
- -5ºC to +35ºC, up to 13,000 feet (4000m)
Short-term* exceptional conditions:
- -5ºC to +55ºC, up to 6000 feet (1800m)
- -5ºC to +50ºC, up to 10,000 feet (3000m)
- -5ºC to +45ºC, up to 13,000 feet (4000m)
- -5ºC to +45ºC, at sea level with single fan failure
*Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences.
|
|
Relative humidity
|
10% to 95%, noncondensing
|
|
Acoustic noise
Measured per ISO 7779 and declared per ISO 9296
Bystander positions operating to an ambient temperature of 25°C
|
With AC or DC power supply (with 24 PoE+ ports loaded):
- LpA: 43dB typical, 45dB maximum
- LwA: 5.2B typical, 5.5B maximum
Typical: Noise emission for a typical configuration
Maximum: Statistical maximum to account for variation in production
|
|
Storage environment
|
Temperature: -40ºC to 70ºC
Altitude: 15,000 ft
|
|
Vibration
|
Operating: 0.41Grms from 3 to 500Hz with spectral break points of 0.0005 G2/Hz at 10Hz and 200Hz 5dB/octave roll off at each end. |
| Nonoperating: 1.12Grms from 3 to 500Hz with spectral break points of 0.0065 G2/Hz at 10Hz and 100Hz 5dB/octave roll off at each end. |
|
Shock
|
Operating: 30G, 2ms half sine |
| Nonoperating: 55G, 10ms trapezoid |
| Safety and compliance |
| Safety certifications |
UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
IEC 60950-1 Second Edition
NOM (obtained by partners and distributors)
|
| Electromagnetic emissions certifications |
47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)
AS/NZS CISPR22 Class A
CISPR22 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
KN22 Class A
KCC
CNS13438 Class A
EN55024
CISPR24
KN24
|
| Environmental |
Reduction of Hazardous Substances (ROHS) 5 |
| Noise specifications |
Office Product Spec: 48dBA at 30°C (refer to ISO 7779) |
| Telco |
CLEI code |
Switch
.png){kind=icon}
.png){kind=logo}
.jpg)
.jpg)

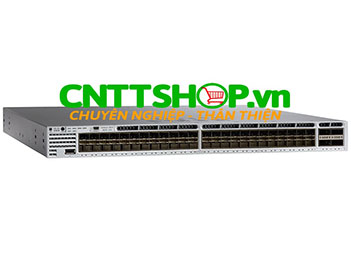

Bạn đang cần tư vấn về sản phẩm: WS-C3850-48XS-E ?
Switch cisco WS-C3850-48XS-E cấu hình bằng giao diện web được bạn nhé.
Giá của các mã switch dòng C1000, C2960X, C2960L, C3650, C3850 đã được gửi vào mail, bạn vui lòng check mail nhé.
Thiết bị chuyển mạch cisco WS-C3850-48XS-E có 48 cổng quang 10G bạn nhé
Switch cisco WS-C3850-48XS-E có thế cấu hình bằng giao diện web nhé bạn
Thiết bị chuyển mạch Cisco WS-C3850-48XS-E có thể sử dụng đồng thời module single mode và multi mode nhé bạn
