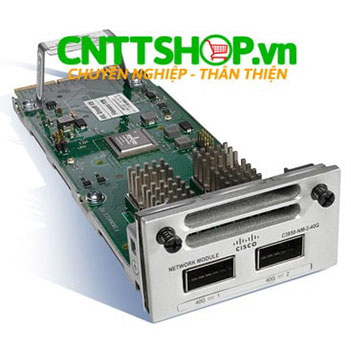

C3850-NM-2-40G Cisco Catalyst 3850 2 x 40 Gigabit Ethernet network module
-----------------------------------------------------------
Part Number : C3850-NM-2-40G
Spare Part Number : C3850-NM-2-40G=
Bảo hành : 12 tháng
Made In : Asia
Tất cả các cổng của module Cisco C3850-NM-2-40G đều là các cổng Natively GigabitEthernet và được cấu hình từ FortyGigabitEthernet1/1/1 đến FortyGigabitEthernet1/1/2 và từ TenGigabitEthernet1/1/1 đến TenGigabitEthernet1/1/8 để sử dụng các module quang QSFP 40G và 4x10G breakout cable. Khi sử dụng module QSFP 40G , mặc định sẽ sử dụng các cổng FortyGigabitEthernet, còn các cổng TenGigabitEthernet sẽ không được sử dụng.
| Interface | Action |
|---|---|
|
FortyGigabitEthernet1/1/1 |
Configure this interface |
|
FortyGigabitEthernet1/1/2 |
Configure this interface |
|
TenGigabitEthernet1/1/1 |
Disregard |
|
TenGigabitEthernet1/1/2 |
Disregard |
|
TenGigabitEthernet1/1/3 |
Disregard |
|
TenGigabitEthernet1/1/4 |
Disregard |
|
TenGigabitEthernet1/1/5 |
Disregard |
|
TenGigabitEthernet1/1/6 |
Disregard |
|
TenGigabitEthernet1/1/7 |
Disregard |
|
TenGigabitEthernet1/1/8 |
Disregard |
Nếu sử dụng 4x10G breakout cable, các cổng 10G sẽ được sử dụng
| Interface | Action |
|---|---|
|
FortyGigabitEthernet1/1/1 |
Disregard |
|
FortyGigabitEthernet1/1/2 |
Disregard |
|
TenGigabitEthernet1/1/1 |
Configure this interface |
|
TenGigabitEthernet1/1/2 |
Configure this interface |
|
TenGigabitEthernet1/1/3 |
Configure this interface |
|
TenGigabitEthernet1/1/4 |
Configure this interface |
|
TenGigabitEthernet1/1/5 |
Configure this interface |
|
TenGigabitEthernet1/1/6 |
Configure this interface |
|
TenGigabitEthernet1/1/7 |
Configure this interface |
|
TenGigabitEthernet1/1/8 |
Configure this interface |
Các module quang dưới đây có thể sử dụng cho Module Cisco C3850-NM-2-40G
|
40GBASE-CR4 QSFP 1m passive |
|
|
40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ 0,5m |
|
|
40GBase-AOC QSFP to QSFP 30m |
|
|
40GBase-AOC QSFP to QSFP 25m |
|
|
40GBase-AOC QSFP to QSFP 20m |
|
|
40GBase-AOC QSFP to QSFP 15m |
|
|
40GBase-AOC QSFP to QSFP 10m |
|
|
40GBase-AOC QSFP to QSFP 7m |
|
|
40GBase-AOC QSFP to QSFP 5m |
|
|
40GBase-AOC QSFP to QSFP 3m |
|
|
40GBase-AOC QSFP to QSFP 2m |
|
|
40GBase-AOC QSFP to QSFP 1m |
|
|
40GBase-AOC QSFP to 4 SFP+ 10m |
|
|
40GBase-AOC QSFP to 4 SFP+ 7m |
|
|
40GBase-AOC QSFP to 4 SFP+ 5m |
|
|
40GBase-AOC QSFP to 4 SFP+ 3m |
|
|
40GBase-AOC QSFP to 4 SFP+ 2m |
|
|
40GBase-AOC QSFP to 4 SFP+ 1m |
|
|
40GBASE-CR4 QSFP 10m active |
|
|
40GBASE-CR4 QSFP 7m active |
|
|
40GBASE-CR4 QSFP 5m passive |
|
|
40GBASE-CR4 QSFP 4m passive |
|
|
40GBASE-CR4 QSFP 3m passive |
|
|
40GBASE-CR4 QSFP 2m passive |
|
|
40GBASE-CR4 QSFP 0,5m passive |
|
|
40GBASE-CR4 QSFP 4 10GBASE-CU SFP+ 10m |
|
|
40GBASE-CR4 QSFP 4 10GBASE-CU SFP+ 7m |
|
|
40GBASE-CR4 QSFP to 4 10GBASE-CU 5m |
|
|
40GBASE-CR4 QSFP to 4 10GBASE-CU 4m |
|
|
40GBASE-CR4 QSFP to 4 10GBASE-CU 3m |
|
|
40GBASE-CR4 QSFP to 4 10GBASE-CU 2m |
|
|
40GBASE-CR4 QSFP to 4 10GBASE-CU 1m |
|
|
40GBASE-ER4 1310nm 40km LC Duplex SMF |
|
|
4x10GBASE-LR 1310nm 10km MPO12 SMF |
|
|
40GBASE-LR4L QSFP 1310 nm 2km SMF |
|
|
40GBASE-LR4 1310nm 10km LC SMF |
|
|
4 lanes 850 nm 300m MPO-12 MMF |
|
|
Fabric Extender 850nm 150m MMF |
|
|
40GBASE-SR4 850nm 150m MMF |
|
|
832 - 918nm 150m MMF Transceiver |
|
|
832 - 918nm 150m MMF Transceiver |
|
|
1310nm 10km LC Duplex SMF |
|
|
40GBASE-SR4 4 lanes 850 nm 150m MMF |
Module C3850-NM-2-40G dùng được cho các part sau của Cisco
|
Product Number |
Description |
|
Stackable 48 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply 1 RU, IP Services feature set |
|
|
Stackable 48 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply 1 RU, LAN Base feature set (StackPower cables need to be purchased separately) |
|
|
Stackable 48 10/100/1000 Ethernet ports, with 350WAC power supply 1 RU, LAN Base feature set (StackPower cables need to be purchased separately) |
|
|
Stackable 48 10/100/1000 Ethernet ports, with 350WAC power supply 1 RU, IP Base feature set |
|
|
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, LAN Base feature set (StackPower cables need to be purchased separately) |
|
|
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, IP Base feature set |
|
|
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply 1 RU, LAN Base feature set (StackPower cables need to be purchased separately) |
|
|
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply 1 RU, IP Base feature set |
|
|
Stackable 48 10/100/1000 Ethernet ports, with 350WAC power supply 1 RU, IP Services feature set |
|
|
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, IP Services feature set |
|
|
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply 1 RU, IP Services feature set |
|
|
Cisco Catalyst 3850 24-port PoE IP Base with 5 access point license |
|
|
Cisco Catalyst 3850 48-port PoE IP Base with 5 access point license |
|
| WS-C3850-12X48U-L |
Stackable 48 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply 1RU, LAN Base feature set |
| WS-C3850-12X48U-S |
Stackable 48 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply 1RU, IP Base feature set |
| WS-C3850-12X48U-E |
Stackable 48 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply 1RU, IP Services feature set |
| WS-C3850-24XU-L |
Stackable 24 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply 1RU, LAN Base feature set |
| WS-C3850-24XU-S |
Stackable 24 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply 1RU, IP Base feature set |
| WS-C3850-24XU-E |
Stackable 24 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply 1RU, IP Services feature set |
Bạn đang cần tư vấn về sản phẩm: C3850-NM-2-40G ?
bên shop sẵn hàng mã C3850-NM-2-40G Cisco Catalyst 3850 2 x 40 Gigabit Network Module. Báo giá chi tiết đã được gửi qua email của bạn.
C3850-NM-2-40G Cisco Catalyst 3850 2 x 40 Gigabit Network Module dùng module dạng QSFP
C3850-NM-2-40G Cisco Catalyst 3850 2 x 40 Gigabit Network Module có xuất xứ china và được bảo hành 12 tháng bạn nhé.
