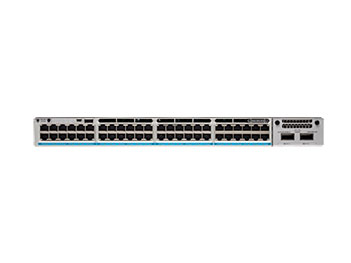

C9300-48H-A Cisco Catalyst 9300 48-port UPOE+, Network Advantage.

Cisco C9300-48H-A Catalyst 9300 series switch 48-port modular uplinks UPOE+, Network Advantage.

✓ Mã sản phẩm: C9300-48H-A

✓ Tình trạng: Còn Hàng

C9300-48H-A Datasheet

Cisco Catalyst C9300-48H-A 48-port UPOE+, Network Advantage.

Name: C9300-48H-A
Brand: CISCO
SKU: C9300-48H-A
Availability: InStock
Rating: 5 (28 reviews)

Part Number	:
List Price	: $
Giá bán	:
Bảo hành	:
Made In	:
Stock	:

View Datasheet C9300-48H-A

Thông số kỹ thuật Switch Cisco C9300-48H-A

Description	Performance
Total 10/100/1000 port	48 Cisco UPOE+
Uplink	Modular Uplinks
Switching capacity	256 Gbps
Switching capacity with stacking	736 Gbps
Forwarding rate	190.48 Mpps
Forwarding rate with stacking	547.62 Mpps
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	32,000
IPv6 routing entries	16,000
Multicast routing scale	8,000
QoS scale entries	5,120
ACL scale entries	5,120
Packet buffer per SKU	16 MB buffer for 24- or 48-port Gigabit Ethernet models 32 MB buffer for 24 and 48-port Multigigabit
FNF entries	64,000 flow 128,000 flows
DRAM	8 GB
Flash	16 GB
VLAN IDs	4094
Total Switched Virtual Interfaces (SVIs)	1000
Jumbo frames	9198 bytes
Total routed ports per 9300 Series stack	448
Dimensions, Weight, and Mean Time Between Failures Metrics
Dimensions (H x W x D)	1.73 x 17.5 x 19.2/4.4 x 44.5 x 48.8 (cm)
Weight	17.03 Pounds / 7.72 Kilograms
Mean time between failures (hours)	227,410
Power Supply
Default AC power supply	1100W AC
Available PoE power	822W
Cisco StackPower	Yes
Safety and Compliance Information
Safety certifications	- UL 60950-1 - CAN/CSA-C222.2 No. 60950-1 - EN 60950-1 - IEC 60950-1 - AS/NZS 60950.1 - IEEE 802.3
Electromagnetic emissions certifications	- 47 CFR Part 15 - CISPR22 Class A - EN 300 386 V1.6.1 - EN 55022 Class A - EN 55032 Class A - CISPR 32 Class A - EN61000-3-2 - EN61000-3-3 - ICES-003 Class A - TCVN 7189 Class A - V-3 Class A - CISPR24 - EN 300 386 - EN55024 - TCVN 7317 - V-2/2015.04 - V-3/2015.04 - CNS13438 - KN32 - KN35 Additional Certifications for C9300L SKUs: - QCVN 118:2018/BTTTT - VCCI-CISPR 32 Class A
Environmental	Reduction of Hazardous Substances (ROHS) 5
