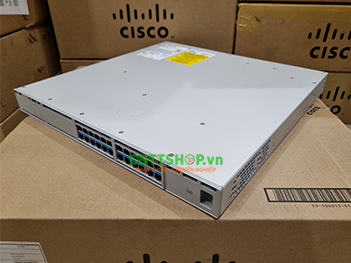

| Datasheet C9300X-24HX-A |
|
| Specifications |
|
| Multigigabit Ports |
24 Cisco UPOE+, 24x 10G Multigigabit (100M, 1G, 2.5G, 5G, or 10 Gbps) |
| Uplink |
Modular Uplinks |
| Switching capacity |
880 Gbps |
| Switching capacity with stacking |
1,880 Gbps |
| Forwarding rate |
327.38 Mpps |
| Forwarding rate with stacking |
1398.80 Mpps |
| Total number of MAC addresses |
32,000 |
| Total number of IPv4 routes (ARP plus learned routes) |
39,000 (24,000 direct routes and 15,000 indirect routes) |
| IPv6 routing entries |
19,500 |
| Multicast routing scale |
8,000 |
| QoS scale entries |
4,000 |
| ACL scale entries |
8,000 |
| Packet buffer per SKU |
16 MB buffer for 48-port 5G Multigigabit, 24-port 10G Multigigabit and 12-port Fiber 32 MB buffer for 48-port 10G Multigigabit and 24-port Fiber |
| FNF entries |
64,000 flows on 48-port 5G Multigigabit and 24-port 10G Multigigabit and 12-port Fiber128,000 flows on 48-port 10G Multigigabit and 24-port Fiber |
| DRAM |
16 GB |
| Flash |
16 GB |
| VLAN IDs |
4094 |
| Total Switched Virtual Interfaces (SVIs) |
1000 |
| Jumbo frames |
9198 bytes |
| Total routed ports per Catalyst 9300 Series stack |
448 |
| Dimensions (H x W x D) inches |
1.73 x 17.5 x 17.57/1.73 x 17.5 x 20.63 |
| Dimensions (H x W x D) Cms |
4.4 x 44.5 x 44.6/4.4 x 44.5 x 52.4 |
| Weight (with default power supply) |
13.8 Pounds/ 6.25 Kilograms |
| Mean Time Between Failures – MTBF (hours) |
TBD |
| Default AC power supply |
1100W AC |
| Available PoE power |
735W |
| Cisco StackPower |
Yes (Larger Power Budget) |
| Safety and Compliance Information |
| Safety certifications |
- UL 60950-1
- CAN/CSA-C222.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
- AS/NZS 60950.1
- IEEE 802.3
|
| Electromagnetic compatibility certifications |
- 47 CFR Part 15
- CISPR22 Class A
- EN 300 386 V1.6.1
- EN 55022 Class A
- EN 55032 Class A
- CISPR 32 Class A
- EN61000-3-2
- EN61000-3-3
- ICES-003 Class A
- TCVN 7189 Class A
- V-3 Class A
- CISPR24
- EN 300 386
- EN55024
- TCVN 7317
- V-2/2015.04
- V-3/2015.04
- CNS13438
- KN32
KN35 Additional Certifications for C9300L SKUs:
- QCVN 118:2018/BTTTT
- VCCI-CISPR 32 Class A
|
| Environmental |
Reduction of Hazardous Substances (ROHS) 5 |
