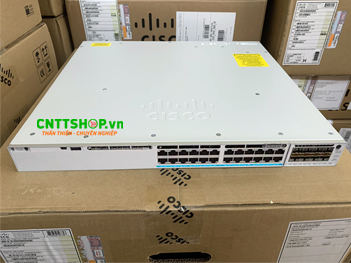

Cisco C9300X-24HX-E Catalyst 9300, Network Essentials
Thiết bị chuyển mạch C9300X-24HX-E có tính thẩm mỹ cao nhờ nước sơn màu trắng sang trọng, lịch sự, thiết kế nhỏ gọn, nhẹ nhàng (chỉ nặng 6.25 kg).
Về hiệu suất, C9300X-24HX-E có băng thông chuyển mạch là 880 Gbps, có thể lên tới 1,880 Gbps khi Stack, tốc độ truyền tải dữ liệu 327.38 Mpps, có thể lên 1398.80 Mpps nếu Stack.
Thông số kỹ thuật C9300X-24HX-E Specifications
| Datasheet C9300X-24HX-E | |
| Specifications | |
| Multigigabit Ports | 24 Cisco UPOE+, 24x 10G Multigigabit (100M, 1G, 2.5G, 5G, or 10 Gbps) |
| Uplink | Modular Uplinks |
| Switching capacity | 880 Gbps |
| Switching capacity with stacking | 1,880 Gbps |
| Forwarding rate | 327.38 Mpps |
| Forwarding rate with stacking | 1398.80 Mpps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 39,000 (24,000 direct routes and 15,000 indirect routes) |
| IPv6 routing entries | 19,500 |
| Multicast routing scale | 8,000 |
| QoS scale entries | 4,000 |
| ACL scale entries | 8,000 |
| Packet buffer per SKU | 16 MB buffer for 48-port 5G Multigigabit, 24-port 10G Multigigabit and 12-port Fiber 32 MB buffer for 48-port 10G Multigigabit and 24-port Fiber |
| FNF entries | 64,000 flows on 48-port 5G Multigigabit and 24-port 10G Multigigabit and 12-port Fiber128,000 flows on 48-port 10G Multigigabit and 24-port Fiber |
| DRAM | 16 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| Total routed ports per Catalyst 9300 Series stack | 448 |
| Dimensions (H x W x D) inches | 1.73 x 17.5 x 17.57/1.73 x 17.5 x 20.63 |
| Dimensions (H x W x D) Cms | 4.4 x 44.5 x 44.6/4.4 x 44.5 x 52.4 |
| Weight (with default power supply) | 13.8 Pounds/ 6.25 Kilograms |
| Mean Time Between Failures – MTBF (hours) | TBD |
| Default AC power supply | 1100W AC |
| Available PoE power | 735W |
| Cisco StackPower | Yes (Larger Power Budget) |
| Safety and Compliance Information | |
| Safety certifications |
- UL 60950-1 - CAN/CSA-C222.2 No. 60950-1 - EN 60950-1 - IEC 60950-1 - AS/NZS 60950.1 - IEEE 802.3 |
| Electromagnetic compatibility certifications |
- 47 CFR Part 15 - CISPR22 Class A - EN 300 386 V1.6.1 - EN 55022 Class A - EN 55032 Class A - CISPR 32 Class A - EN61000-3-2 - EN61000-3-3 - ICES-003 Class A - TCVN 7189 Class A - V-3 Class A - CISPR24 - EN 300 386 - EN55024 - TCVN 7317 - V-2/2015.04 - V-3/2015.04 - CNS13438 - KN32 KN35 Additional Certifications for C9300L SKUs: - QCVN 118:2018/BTTTT - VCCI-CISPR 32 Class A |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
